RouteMaster NL - Logistics Platform

A cloud-native, event-driven logistics platform for tracking shipping containers.

Architecture

Local Development Setup:

Add the following to /etc/hosts:

127.0.0.1    logistics.example.com
127.0.0.1    auth.example.com

Requests flow: /etc/hosts → Minikube tunnel → Envoy Gateway → Services

Project Structure

logistics/
├── Makefile             # Main build orchestration
├── telemetry/           # GPS ingestion service (Go, Kafka producer)
├── consumer/            # Kafka consumer service (Go, TimescaleDB writer)
├── frontend/            # React + TypeScript SPA (Vite, Keycloak auth)
├── infra/               # Kubernetes infrastructure
│   ├── kafka.yaml       # Strimzi Kafka cluster
│   ├── redis.yaml       # Redis cache
│   ├── keycloakx/       # Keycloak IAM (Helm values)
│   └── gateway/         # Envoy Gateway ingress
├── certs/               # TLS certificate infrastructure
├── docs/                # Documentation and diagrams
├── makefiles/           # Modular Makefile includes
├── .github/             # GitHub Actions workflows
├── ruleengine/          # Geofencing rule engine (Go, PostGIS, Kafka producer)
└── notification/        # Email notification service (Go, nikoksr/notify, Gmail SMTP)

Telemetry Service

GPS data ingestion service that receives container location data and writes to Kafka.

See Telemetry Service for:

• API specification and data format
• Configuration options
• Build, run, and test instructions
• Performance characteristics

Local Documentation

Serve the project documentation locally using MkDocs.

Prerequisites:

# Using uv (recommended)
uv sync

# Or using pip
pip install mkdocs>=1.6.1 mkdocs-simple-blog>=0.3.0

Commands:

Command	Description
mkdocs serve	Start local server at http://localhost:8000
mkdocs build	Build static site to /site directory

TLS/PKI Setup

This project uses a self-signed PKI for local development with TLS.

Quick Setup:

make init-pki                    # Initialize Root CA and Intermediate CA
make deploy-tls DOMAIN=app.example.com NAMESPACE=app SECRET_NAME=wildcard-cert

Key Commands:

Command	Description
make init-pki	Initialize full PKI (Root + Intermediate CA)
make gen-tls-fast DOMAIN=xxx	Generate cert without Root CA password
make verify-cert	Verify certificate validity
make trust-ca-macos	Trust CA on macOS

See TLS/PKI Guide for:

• PKI trust chain architecture
• Certificate types and validity periods
• OpenSSL command reference
• Troubleshooting FAQ

Getting Started

Prerequisites

Tool	Installation
Minikube	install
Docker	install
kubectl	install
Helm	install
npm	install
Go	install (for local dev)

Gateway & JWT Troubleshooting

Understanding JWT Validation

Three URLs must align for JWT validation to work:

1. Token Issuer - Written to JWT iss claim by Keycloak
2. Controlled by --hostname flag (e.g., --hostname https://auth.example.com/auth)
3. This is the external URL that clients use to access Keycloak

4. Mismatch error: "Jwt issuer is not configured"

5. SecurityPolicy Issuer - Gateway validates token against this

6. Must exactly match Token Issuer (the external URL)

7. JWKS URI - Gateway fetches public keys to verify signature

8. Uses internal K8s Service URL (Gateway runs inside cluster)
9. Must use Service port (default 80), not Pod port (8080)
10. Wrong port error: "Jwks remote fetch is failed"

Key Concept: Issuer = external URL (what clients see), JWKS URI = internal URL (what Gateway uses).

Example Config:

# Keycloak Helm values (keycloak-server-values.yaml)
command:
  - "--hostname"
  - "https://auth.example.com/auth"  # External URL, sets token issuer

# SecurityPolicy (security-policy.yaml)
issuer: https://auth.example.com/auth/realms/myrealm  # Must match token's iss claim
remoteJWKS:
  uri: http://keycloak-keycloakx-http.app.svc.cluster.local/auth/realms/myrealm/protocol/openid-connect/certs  # Internal K8s URL

Note: The /auth prefix in the path comes from the --hostname value, not from Keycloak version.

---

JWKS Fetch Failed

Symptom:

[warning][jwt] Jwks async fetching url=http://keycloak-keycloakx-http.app.svc.cluster.local/auth/realms/myrealm/protocol/openid-connect/certs: failed

Possible Causes:

Cause	Solution
Wrong Keycloak path	Path depends on --hostname config. If set to https://host/auth, use /auth/realms/...
Config not applied	Run kubectl apply -f infra/gateway/security-policy.yaml -n app
Gateway needs restart	kubectl delete pod -n app -l gateway.envoyproxy.io/owning-gateway-name=gateway

Diagnostic:

# Test JWKS endpoint from inside cluster
kubectl run curl-test --rm -it --image=curlimages/curl --restart=Never -n app -- \
  curl -v http://keycloak-keycloakx-http.app.svc.cluster.local/auth/realms/myrealm/protocol/openid-connect/certs

---

JWT Issuer Not Configured (401 Unauthorized)

Symptom:

HTTP/1.1 401 Unauthorized
www-authenticate: Bearer realm="http://localhost/", error="invalid_token"
Jwt issuer is not configured

Root Cause: Token's iss claim doesn't match SecurityPolicy's issuer field.

Diagnostic - Decode token to find actual issuer:

TOKEN=$(curl -s -X POST "http://localhost:8080/auth/realms/myrealm/protocol/openid-connect/token" \
  -d "grant_type=password&client_id=myclient&username=myuser&password=admin" | jq -r '.access_token')

echo $TOKEN | cut -d'.' -f2 | base64 -d 2>/dev/null | jq '.iss'

Fix: Update infra/gateway/security-policy.yaml to match the token's issuer exactly:

jwt:
  providers:
  - name: keycloak
    issuer: https://auth.example.com/auth/realms/myrealm  # External URL, must match token's iss
    remoteJWKS:
      uri: http://keycloak-keycloakx-http.app.svc.cluster.local/auth/realms/myrealm/protocol/openid-connect/certs  # Internal URL

---

500 Internal Server Error (Backend Not Found)

Symptom:

HTTP/1.1 500 Internal Server Error

Diagnostic:

# Check if backend pods exist
kubectl get pods -n app -l app=logistics

# Check service endpoints
kubectl get endpoints logistics-svc -n app

Common Cause: Service selector doesn't match Pod labels.

# WRONG - selector and pod labels don't match
apiVersion: v1
kind: Service
spec:
  selector:
    app: logistics-deployment  # Looking for this label

---
apiVersion: apps/v1
kind: Deployment
spec:
  template:
    metadata:
      labels:
        app: logistics-pod      # But pods have this label

Fix: Ensure Service selector matches Pod labels exactly.

---

Deployment Selector Immutable Error

Symptom:

The Deployment "xxx" is invalid: spec.selector: Invalid value: field is immutable

Fix: Delete and recreate the deployment:

kubectl delete deployment <name> -n app
kubectl apply -f <manifest>.yaml -n app

K8S structure

flowchart TB
    subgraph GatewayLayer["Gateway Layer"]
        GC[GatewayClass: gateway-class]
        GW[Gateway: gateway :80/:443]
        GC --> GW
    end

    subgraph Routes["HTTPRoutes"]
        R0[HTTPRoute: http-filter-redirect - 301]
        R1[HTTPRoute: frontend-route - logistics.example.com /]
        R2[HTTPRoute: api-route - logistics.example.com /api]
        R3[HTTPRoute: keycloak-route - auth.example.com /auth]
    end

    subgraph Services["Services"]
        S1[frontend-svc:80]
        S2[logistics-svc:8080]
        S3[keycloak-keycloakx-http:80]
    end

    subgraph Deployments["Deployments"]
        D1[frontend]
        D2[logistics-deployment]
        D3[keycloakx - Helm]
    end

    subgraph Policy["SecurityPolicy"]
        SP[SecurityPolicy: jwt - JWT Validation]
    end

    subgraph DataPipeline["Data Pipeline"]
        K[Kafka: container.telemetry]
        CS[consumer-svc:8080]
        CD[consumer-deployment]
        TS[(TimescaleDB - telemetry)]
        RE[ruleengine-svc:8082]
        RD[ruleengine-deployment]
        RDB[(PostGIS - geofences)]
        KE[Kafka: geofence.events]
        NS[notification-svc:8083]
        ND[notification-deployment]
        NDB[(PostgreSQL - notification)]
        EMAIL[Gmail SMTP]
    end

    %% Gateway connections
    GW -- "HTTP" --> R0
    GW -- "HTTPS" --> R1
    GW -- "HTTPS" --> R2
    GW -- "HTTPS" --> R3

    %% Route to service connections
    R1 --> S1
    R2 --> S2
    R3 --> S3

    %% Security policy
    SP -.-> R2

    %% Service to deployment
    S1 --> D1
    S2 --> D2
    S3 --> D3

    %% Data pipeline
    D2 -- "produce" --> K
    K -- "consume" --> CS
    K -- "consume" --> RE
    CS --> CD
    CD --> TS
    RE --> RD
    RD --> RDB
    RD -- "produce" --> KE
    KE -- "consume" --> NS
    NS --> ND
    ND --> NDB
    ND -- "send" --> EMAIL

Quick Start

Supported: macOS, Linux

1. Start Cluster

minikube start --cpus=4 --memory=8192 --driver=docker
kubectl create namespace app
kubectl config set-context --current --namespace=app

2. Install Kafka

# Install Strimzi operator
kubectl apply -f 'https://strimzi.io/install/latest?namespace=app' --server-side --force-conflicts

# Deploy Kafka cluster
kubectl apply -f infra/kafka.yaml -n app

3. Install Gateway

Optional: Remove existing Gateway CRDs (if reinstalling)

kubectl delete crd \
  backends.gateway.envoyproxy.io \
  backendtlspolicies.gateway.networking.k8s.io \
  backendtrafficpolicies.gateway.envoyproxy.io \
  clienttrafficpolicies.gateway.envoyproxy.io \
  envoyextensionpolicies.gateway.envoyproxy.io \
  envoypatchpolicies.gateway.envoyproxy.io \
  envoyproxies.gateway.envoyproxy.io \
  gatewayclasses.gateway.networking.k8s.io \
  gateways.gateway.networking.k8s.io \
  grpcroutes.gateway.networking.k8s.io \
  httproutefilters.gateway.envoyproxy.io \
  httproutes.gateway.networking.k8s.io \
  referencegrants.gateway.networking.k8s.io \
  securitypolicies.gateway.envoyproxy.io \
  tcproutes.gateway.networking.k8s.io \
  tlsroutes.gateway.networking.k8s.io \
  udproutes.gateway.networking.k8s.io \
  xbackendtrafficpolicies.gateway.networking.x-k8s.io \
  xlistenersets.gateway.networking.x-k8s.io \
  --ignore-not-found=true

# Install Envoy Gateway
helm install eg oci://docker.io/envoyproxy/gateway-helm --version v1.5.7 -n app

# Apply gateway config
kubectl apply -k infra/gateway/ -n app

4. Install Keycloak & PostgreSQL

# Add Helm repos
helm repo add codecentric https://codecentric.github.io/helm-charts
helm repo add cnpg https://cloudnative-pg.github.io/charts
helm repo update

# Install Keycloak
helm install keycloak codecentric/keycloakx \
  --values ./infra/keycloakx/keycloak-server-values.yaml -n app

# Install CloudNative PG operator
helm upgrade --install cnpg cnpg/cloudnative-pg --namespace app

# Deploy PostgreSQL cluster
kubectl apply -f infra/keycloakx/postgres-values.yaml -n app

5. Configure TLS

# Generate certificates
make init-pki

# Deploy to cluster
make deploy-tls DOMAIN=app.example.com NAMESPACE=app SECRET_NAME=wildcard-cert

Open a new terminal and run:

sudo minikube tunnel

6. Configure Keycloak

1. Go to https://auth.example.com/auth
2. Follow the official tutorial to create realm, client, user

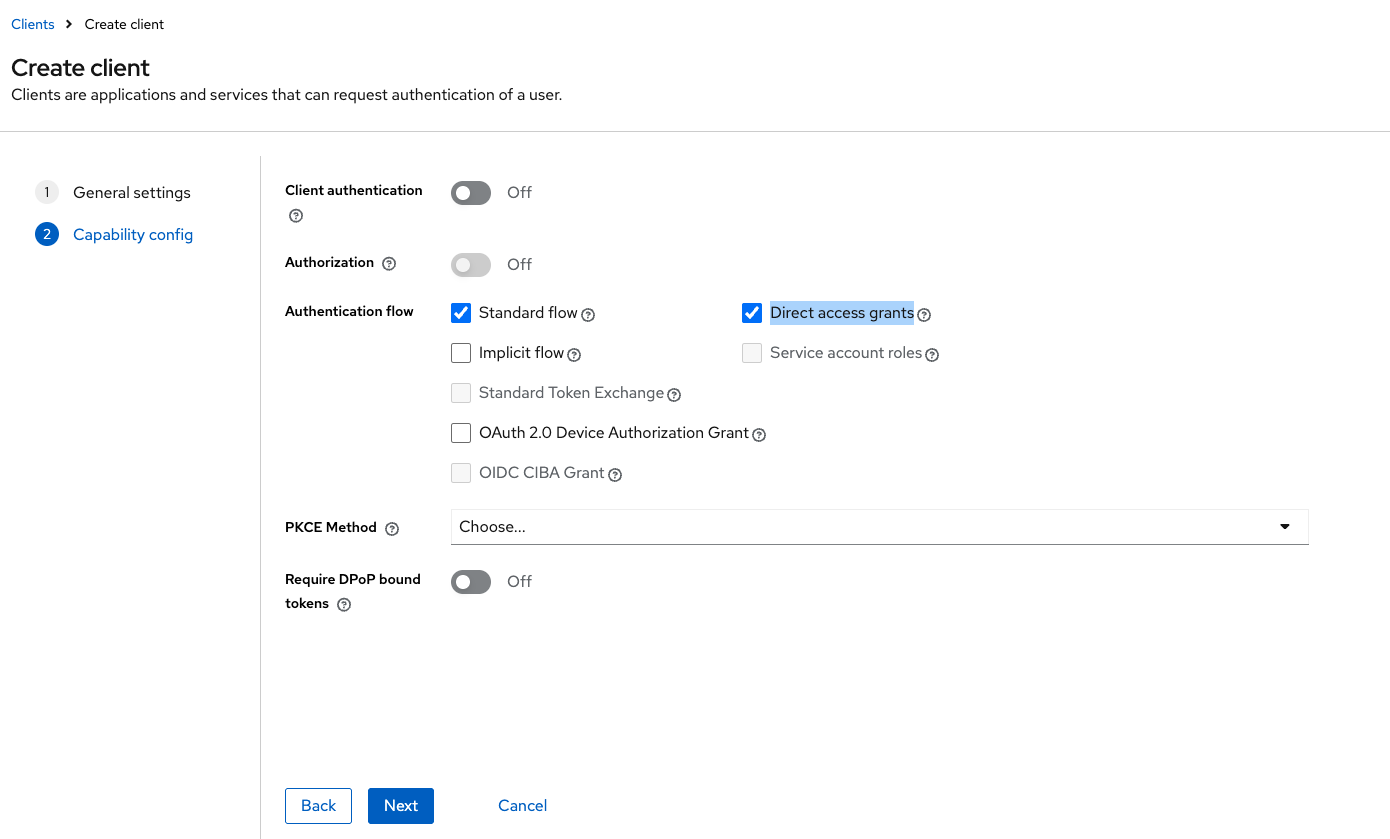

3. Enable Direct access grants:
4. Set redirect URIs:

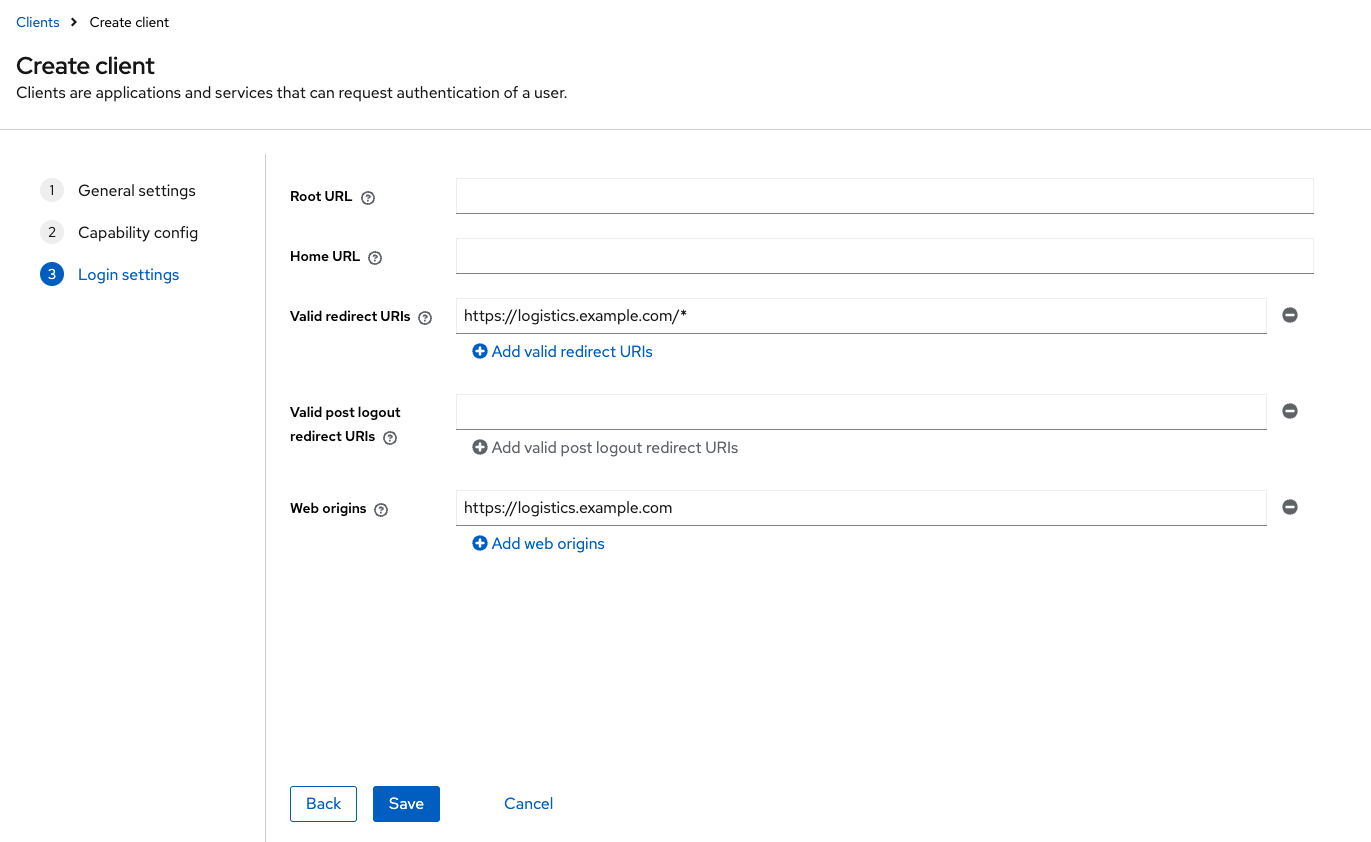

5. Valid redirect URIs: https://logistics.example.com/*
6. Web origins: https://logistics.example.com

7. Deploy Databases

# TimescaleDB (consumer service)
kubectl apply -f consumer/timescaledb/deployment.yaml -n app

# PostGIS (ruleengine service)
kubectl apply -f ruleengine/postgis/deployment.yaml -n app

# PostgreSQL (notification service)
kubectl apply -f notification/postgres/deployment.yaml -n app

# Wait for all CNPG clusters to be ready
kubectl wait --for=condition=Ready cluster/telemetry-timescaledb -n app --timeout=120s
kubectl wait --for=condition=Ready cluster/ruleengine-db -n app --timeout=120s
kubectl wait --for=condition=Ready cluster/notification-db -n app --timeout=120s

8. Run Database Migrations

Each service uses golang-migrate via a Kubernetes Job. The migration SQL files are stored in a ConfigMap, and the Job runs migrate up against the database.

How it works:

1. A ConfigMap holds the migration SQL files (generated from db/migrations/)
2. A Job mounts the ConfigMap and runs the migrate/migrate image
3. The Job reads DATABASE_URL from the CNPG-generated secret (<cluster-name>-app)
4. The Job name includes a version tag (${VERSION}) so each run creates a new Job

Run migrations for all services:

export VERSION=$(git rev-parse --short HEAD)

# Consumer service
kubectl apply -f consumer/migrate-jobs/ -n app
envsubst < consumer/migrate-jobs/migrate-job.yaml | kubectl apply -f -

# Ruleengine service
kubectl apply -f ruleengine/migrate-jobs/ -n app
envsubst < ruleengine/migrate-jobs/migrate-job.yaml | kubectl apply -f -

# Notification service
kubectl apply -f notification/migrate-jobs/ -n app
envsubst < notification/migrate-jobs/migrate-job.yaml | kubectl apply -f -

# Wait for all migrations to complete
kubectl wait --for=condition=complete job/consumer-migrate-${VERSION} -n app --timeout=120s
kubectl wait --for=condition=complete job/ruleengine-migrate-${VERSION} -n app --timeout=120s
kubectl wait --for=condition=complete job/notification-migrate-${VERSION} -n app --timeout=120s

To regenerate a ConfigMap after changing migration files:

make notification-migrate-configmap   # or ruleengine-migrate-configmap

9. Deploy Services

# Create notification SMTP secret
make notification-smtp-secret SMTP_USER=you@gmail.com SMTP_PASSWORD=your-app-password

# Deploy all services
make redeploy-logistics    # Telemetry service
make redeploy-consumer     # Consumer service
make redeploy-ruleengine   # Rule engine service
make redeploy-notification # Notification service
make frontend-redeploy     # Frontend

10. Verify Installation

# Check all pods are running
kubectl get pods -n app

# Wait for Kafka
kubectl wait --for=condition=Ready pod -l app=kafka -n app --timeout=120s

# Wait for Keycloak
kubectl wait --for=condition=Ready pod -l app.kubernetes.io/name=keycloakx -n app --timeout=300s

# Wait for CNPG operator
kubectl wait --for=condition=available deployment/cnpg-cloudnative-pg -n app --timeout=300s

# Test JWT auth
./test-jwt.sh

Open https://logistics.example.com to access the application.

Ref

• https://github.com/cloudnative-pg/charts/tree/main/charts/cloudnative-pg
• https://github.com/codecentric/helm-charts/tree/master/charts/keycloakx
• https://www.keycloak.org/getting-started/getting-started-kube

Frontend

React + TypeScript frontend application using Keycloak for authentication.

Install Dependencies

cd frontend
npm install

Keycloak Configuration

The frontend requires a .env file to connect to Keycloak for authorization.

1. Create the environment configuration file:

cp frontend/.env.example frontend/.env

2. Edit frontend/.env:

VITE_KEYCLOAK_URL=https://auth.example.com/auth
VITE_KEYCLOAK_REALM=myrealm
VITE_KEYCLOAK_CLIENT_ID=myclient

Variable	Description
VITE_KEYCLOAK_URL	Keycloak server address (including /auth path)
VITE_KEYCLOAK_REALM	Keycloak Realm name
VITE_KEYCLOAK_CLIENT_ID	Keycloak Client ID

3. Keycloak Client Configuration (Required):

Configure the Client in Keycloak Admin Console:

1. Login to https://auth.example.com/auth/admin
2. Select Realm → Clients → Click your Client
3. Set the following fields:

Field	Value
Valid redirect URIs	http://localhost:5173/*
Web origins	http://localhost:5173

Without this configuration, you will get an Invalid parameter: redirect_uri error

Start Development Server

cd frontend
npm run dev

Visit http://localhost:5173/, which will automatically redirect to the Keycloak login page.
